Camera Happymodel Nano5
1,199 uah
- Brand:
- Product Code:
12-0056
1-2 days
2-3 days
Visa / Mastercard
Payment upon receipt

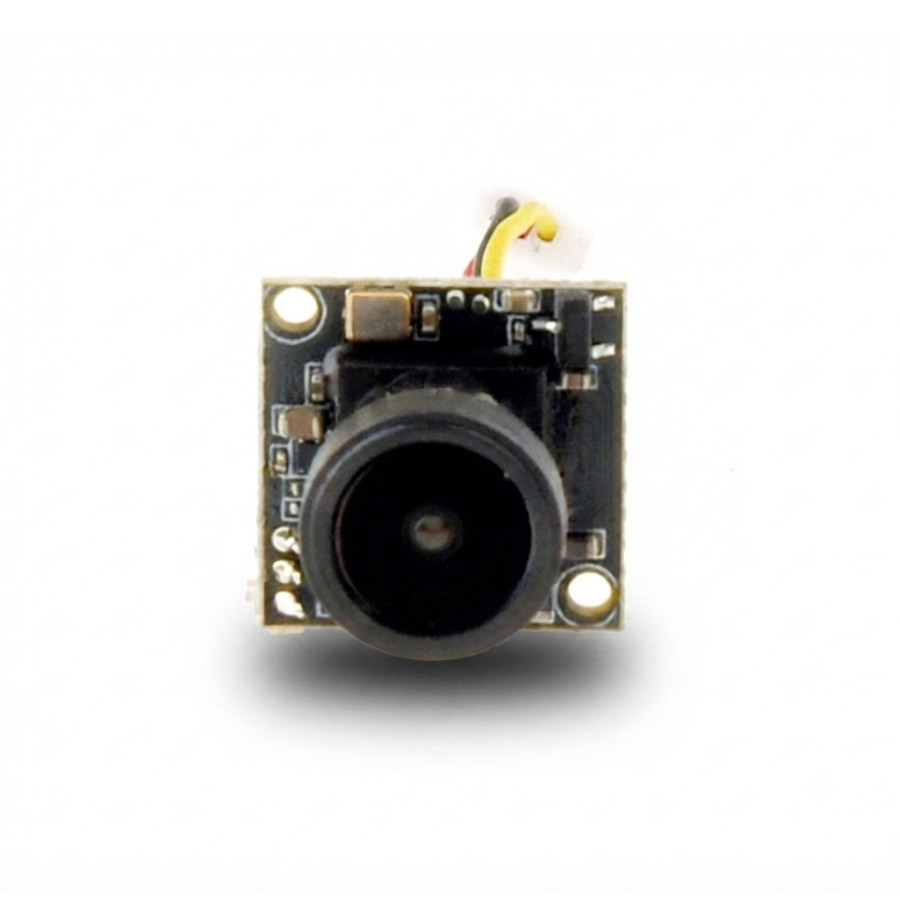

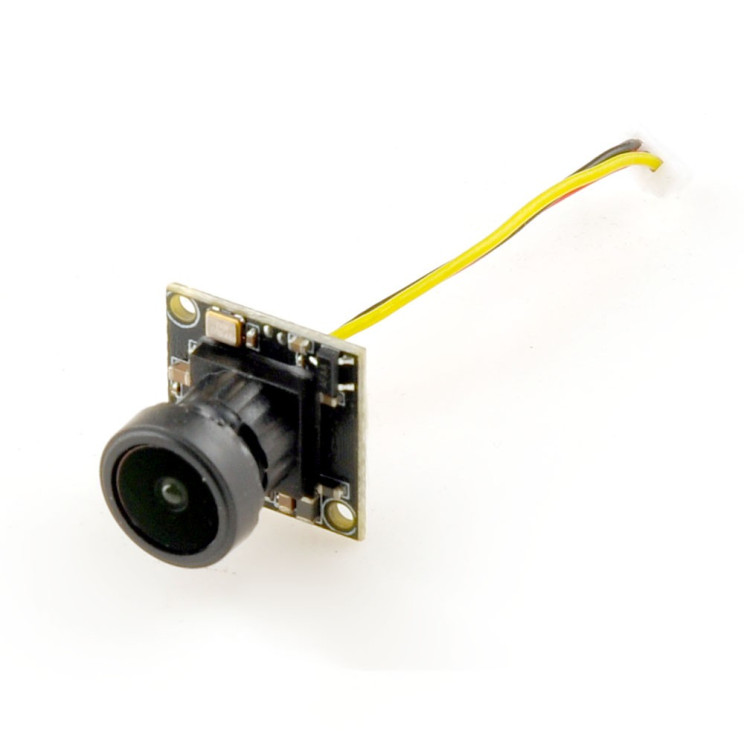

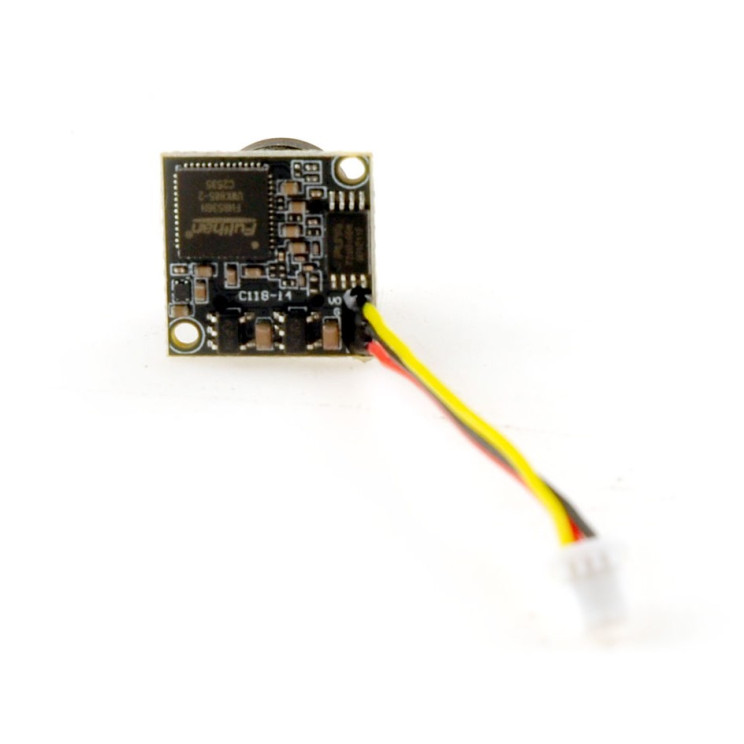

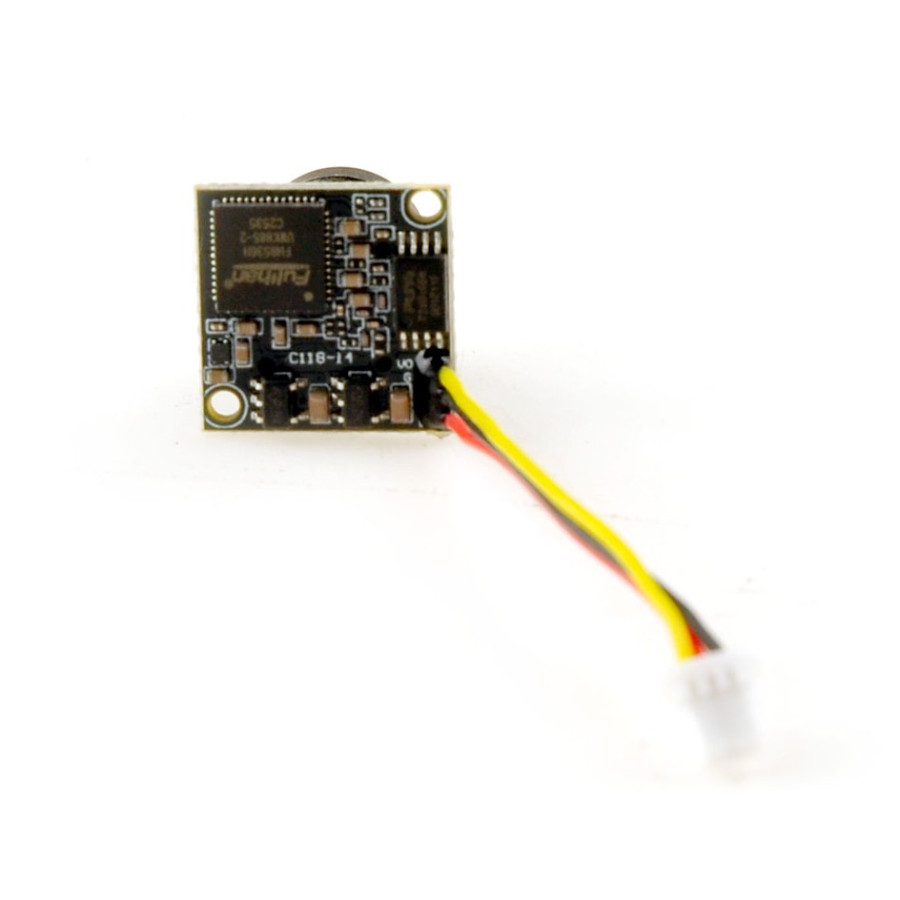

Happymodel Nano5 is an ultra-lightweight analog FPV camera designed specifically for micro-drones, such as the Mobula6 2024 V3. Thanks to a minimum illumination of 0.001Lux, the camera handles lighting changes and low-visibility conditions well. It is equipped with a 1/3″ sensor and features a 1200TVL resolution, providing a detailed, high-clarity image even at high speeds. The 155° FOV lens delivers an excellent peripheral view, making it convenient for both indoor flying and outdoor freestyle.
Features:
- Supports an input voltage range from 3V to 5.5V with low power consumption
- The classic 4:3 format with a 155° field of view allows the pilot to choose a convenient format for goggles or a monitor
- The camera is equipped with an M10 standard lens, which provides a sharp image and scratch resistance
- Compact size and lightweight design make installing this camera as simple as possible; it connects without soldering via an SH1.0 1.0mm micro-connector
- Case Material
ABS plastic
- Brand
Happymodel
- Image Sensor
1/3″ CMOS
- Horizontal Resolution
1200TVL
- Lens
2.1mm (M10)
- Signal System
NTSC
- S/N Ratio
>52dB
- Ratio
4:3
- Electronic Shutter Speed
Auto
- Auto Gain Control (AGC)
Auto
- Min. Illumination
0.001Lux@1.2F
- Connector
1.0mm (SH1.0)
- FOV
155°
- Size
14mm * 14mm
- Color
Black
- Model
Nano5
- Input voltage
DC 3-5.5V
- Weight
1.57g
- Working Current
110mA@5V 120mA@3.3V
