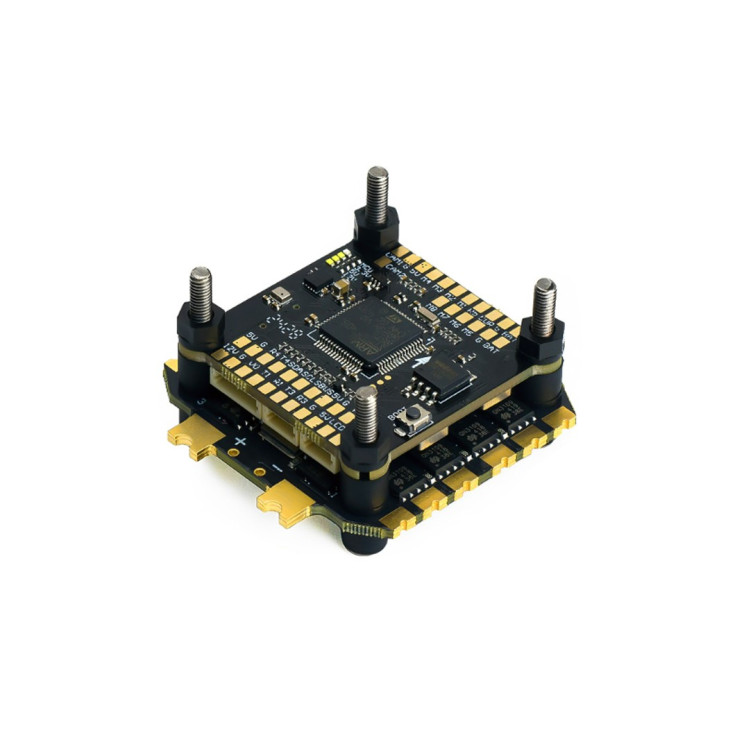

Flight Controller Axisflying Argus ECO 55A+F405 Stack

Axisflying Argus ECO 55A is a balanced system that includes a flight controller and an electronic speed controller (an F405-based stack). It is designed to provide reliable operation and efficient control of an FPV drone, delivering high performance along with fast and precise response, which is important for racing and freestyle. At the core of the controller is the powerful STM32F405RGT6 (168MHz) processor, which ensures high performance and control accuracy, as well as the ICM-42688-P gyroscope, responsible for stability and position detection. The controller is equipped with connectors for quick connection of digital video systems, GPS, and receivers without the need for soldering, which greatly simplifies and speeds up the assembly and maintenance process. The Axisflying Argus ECO 55A is a complete solution specially designed for FPV drones using 4S or 6S batteries, with support for modern digital HD video systems.

Features:

• The presence of 5 UART ports provides greater flexibility for connecting GPS, receiver (RX), VTX, and other devices
• Diagnostic LEDs are located on the FC board, allowing you to monitor the controller's operation
• A continuous current of 55A with a peak of 65A provides sufficient power reserve for freestyle and high-power motors
• 16MB of Blackbox flash memory is provided for data logging
• The controller is very lightweight and has 30.5mm * 30.5mm mounting holes, making it compatible with most frames available on the market
