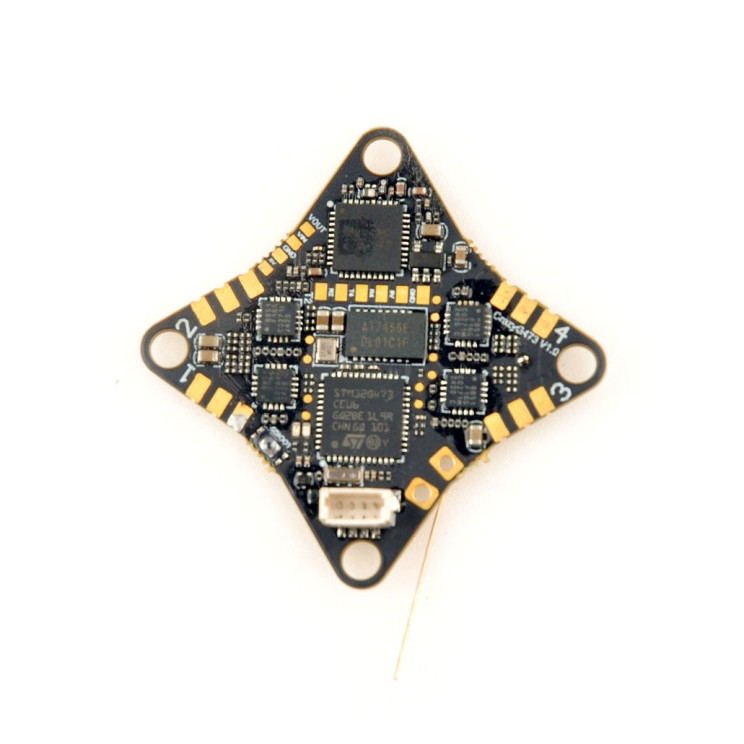

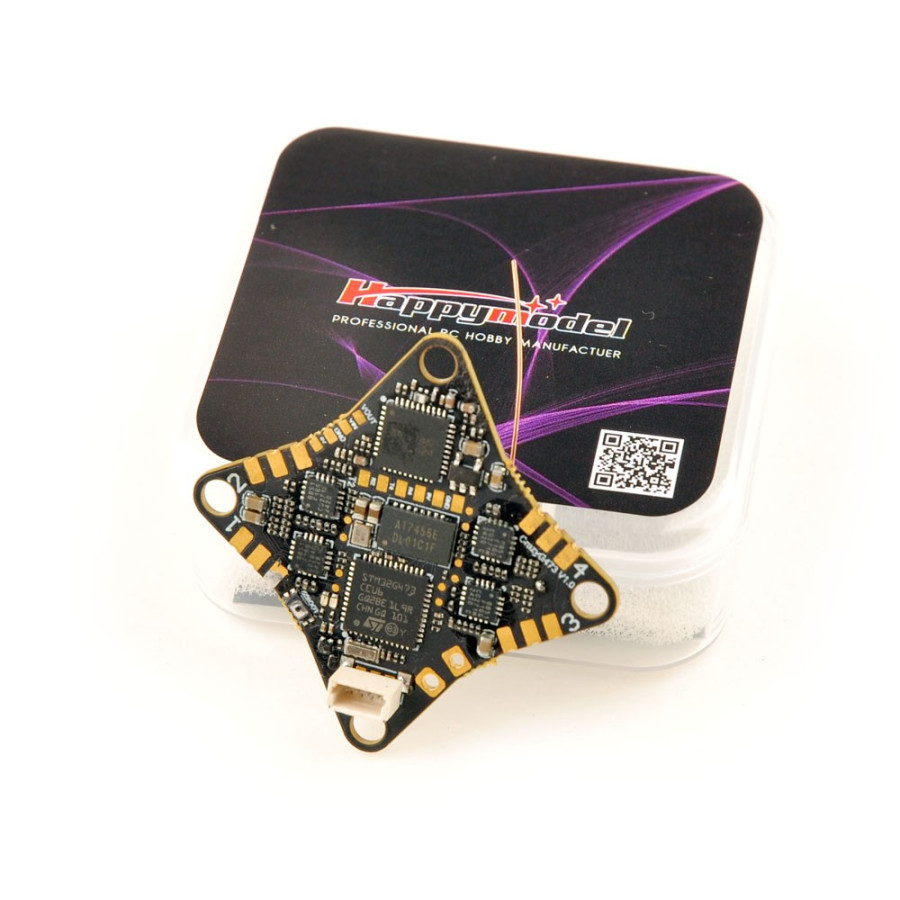

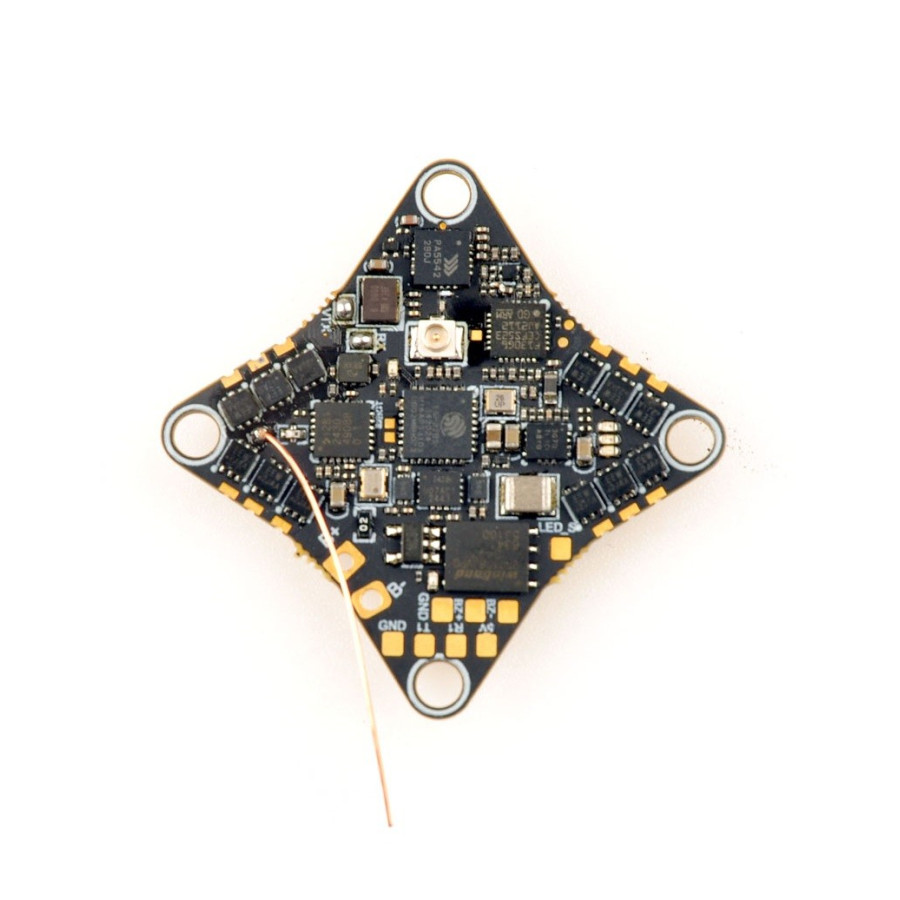

Flight Controller Happymodel CrazybeeG473 V1.0 AIO 5-IN-1

Happymodel CrazybeeG473 V1.0 AIO 5-IN-1 is an ultralight flight controller that combines several components into a single board, specially designed for 65mm micro FPV whoops powered by 1S batteries. It is designed for efficient FPV drone control, providing high performance as well as fast and precise response, which is important for racing and freestyle. The controller is powered by a powerful STM32G473CEU6 (170MHz) processor, ensuring high performance and precise control accuracy, along with an ICM42688P or LSM6DSV16X gyro responsible for stability and attitude determination. The controller supports a wide range of VTX and receiver connection options, ensuring ease of assembly and configuration tailored to the pilot's individual needs. CrazybeeG473 V1.0 AIO is a comprehensive solution specifically engineered for lightweight 1S FPV drones, featuring support for modern digital HD video systems.

Features:

• Equipped with 16MB of onboard Blackbox flash memory for data logging
• The main feature is the transition to the modern and powerful STM32G473 processor architecture, delivering a significant performance boost
• The board integrates 5 key components into a single module - the flight controller, 4-in-1 ESC, powerful processor, ELRS receiver, and a VTX with up to 400mW output power
• Features a full UART ELRS and an adjustable OpenVTX up to 400mW, ensuring extended control and video transmission range
• The controller is very lightweight at 3.8g and features a 25.5mm × 25.5mm mounting pattern, making it compatible with most frames available on the market
