Flight Controller RateFPV F4V4 40A 32bit Bluetooth AIO

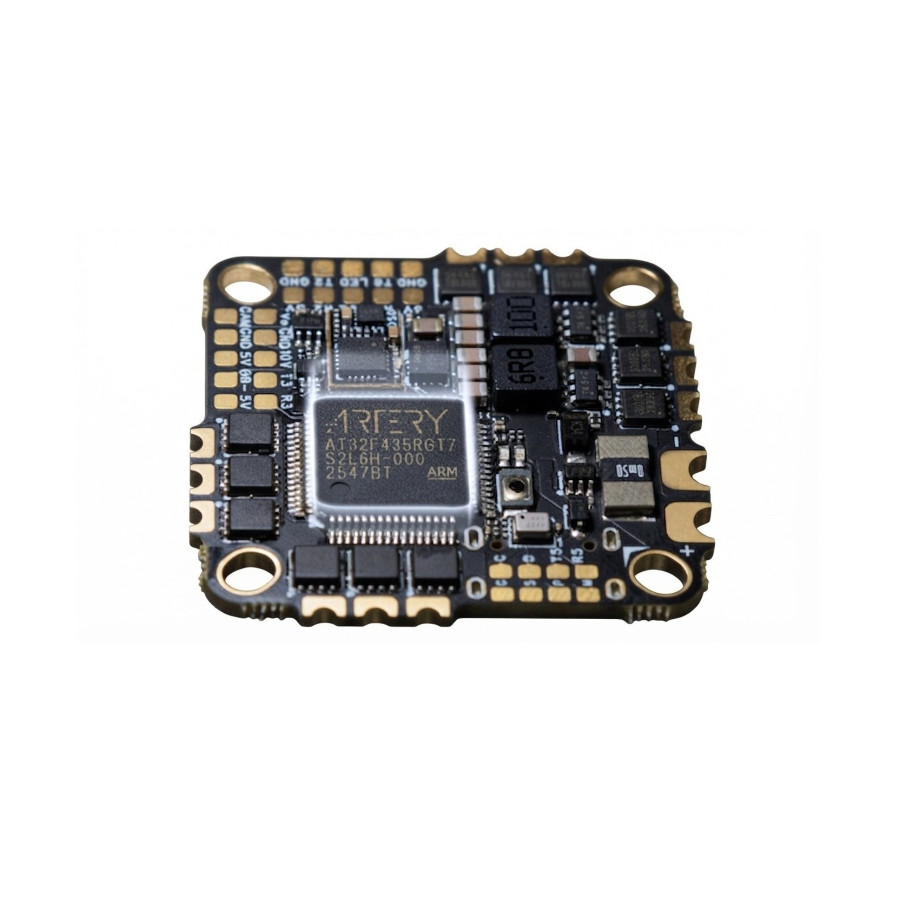

The RateFPV F4V4 40A 32bit Bluetooth AIO is a powerful and high-performance "all-in-one" (AIO) board that combines a flight controller, a 40A electronic speed controller (ESC), a gyroscope, a barometer, and a wireless Bluetooth module. It is specially designed for ultra-lightweight and powerful FPV drones, providing efficient control, high performance, and a fast, precise response. The main technical feature of this model is the use of an advanced STM32F405/435 processor with a 288MHz clock speed, which operates faster than traditional chips and ensures stable operation, high performance, precise control accuracy, as well as the ICM42688 gyroscope responsible for stability and position detection. The RateFPV F4V4 40A AIO is a comprehensive solution specifically designed for lightweight 3–6S FPV drones, with support for modern digital HD video systems.

Features:

• 16MB of Blackbox flash memory is provided for data storage
• Support for 3-6S LiPo provides a wide selection of batteries for various tasks
• The controller is equipped with an on-screen display (OSD) chip to display flight information in FPV goggles, as well as a barometer for altitude measurement
• A built-in Bluetooth module for configuring controller parameters directly from a smartphone via a mobile app without the need to connect wires

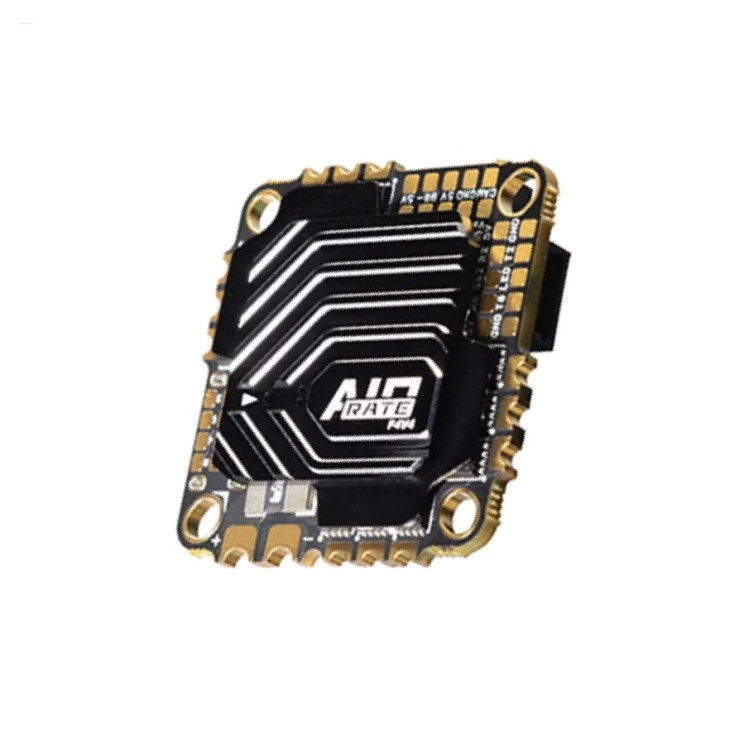

• Equipped with a special aluminum alloy heatsink that dissipates heat from the ESC elements, allowing it to deliver a continuous current of up to 40A without power reduction due to overheating
• The controller dimensions are 33mm * 33mm * 5.5mm, with mounting holes of 25.5mm * 25.5mm, making it suitable for most frames available on the market
