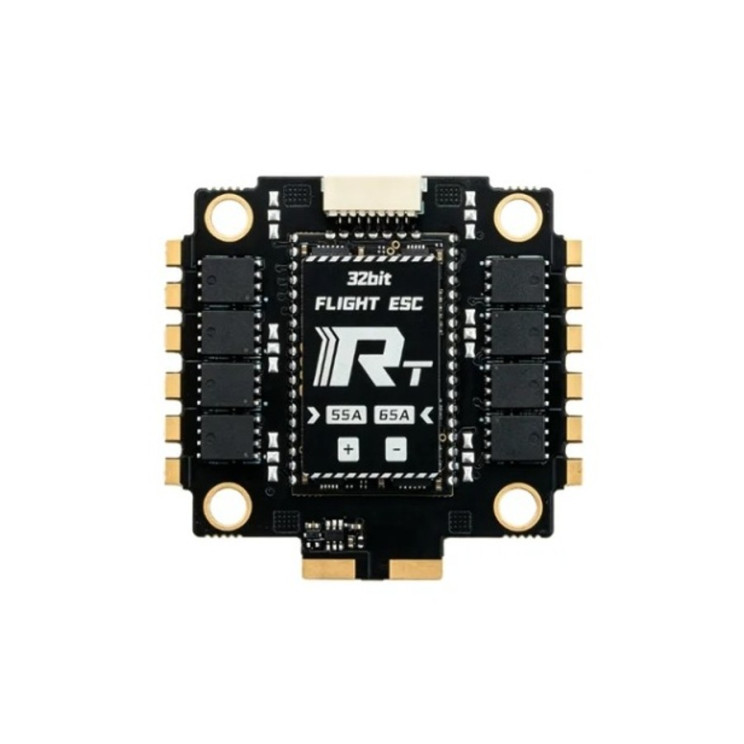

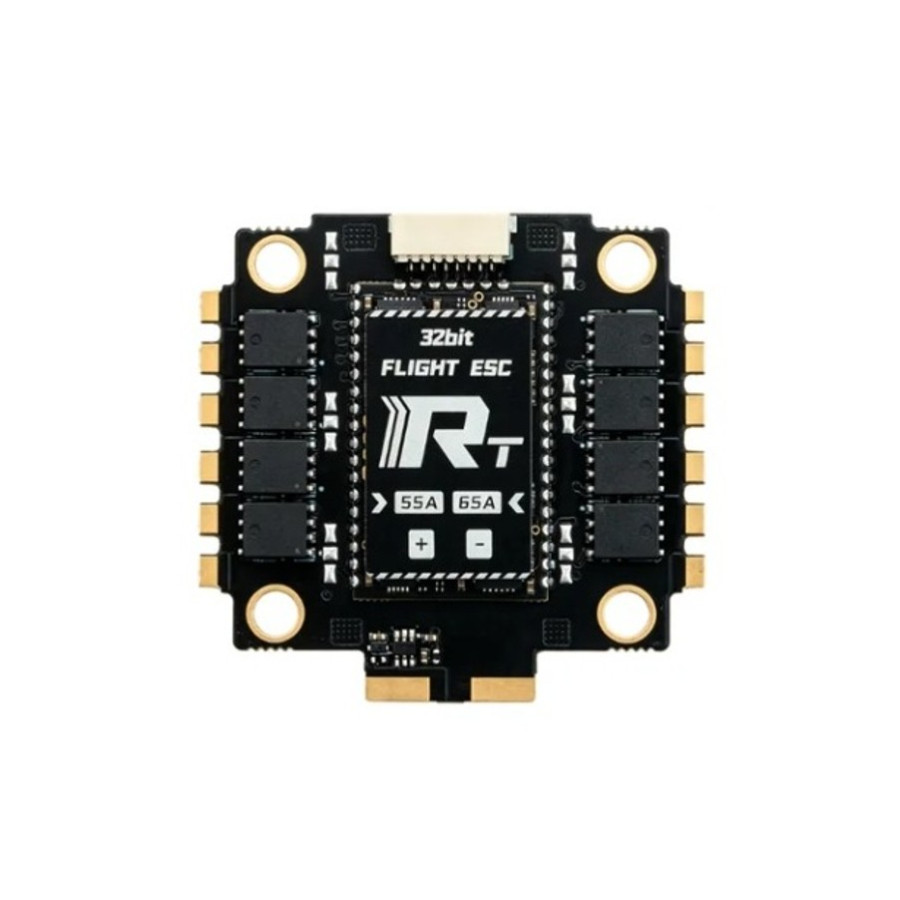

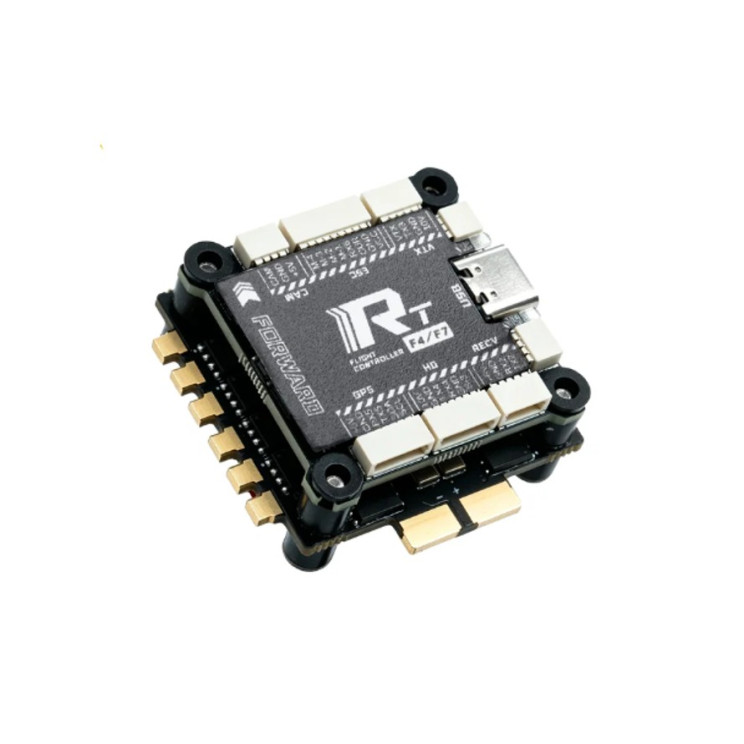

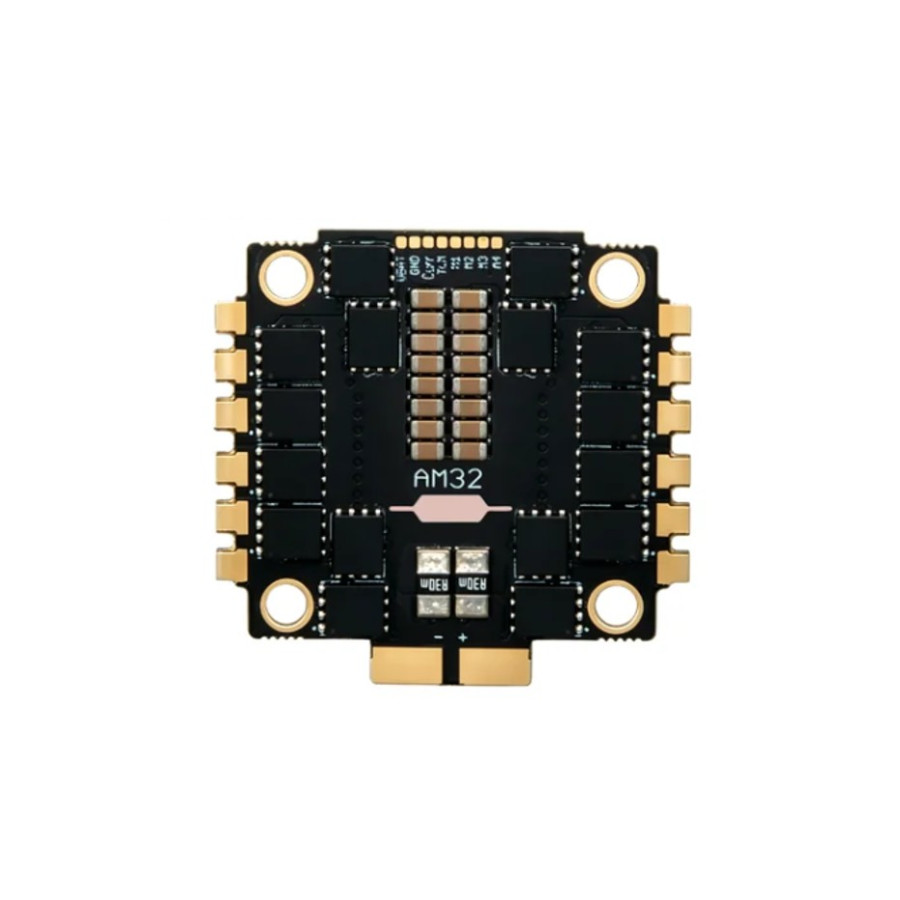

Flight Controller RateFPV F4V4 F435 65A Stack

The RateFPV F4V4 F435 65A Stack is an advanced, high-performance stack for FPV drones that combines a flight controller and a powerful 32-bit 65A electronic speed controller (ESC). It is specially designed for modern agile FPV drones (5 to 7 inches), providing efficient control, high performance, and a fast, precise response. The main technical feature of this model is the use of an advanced AT32F435 processor with a 288MHz clock speed, which operates faster than traditional chips and ensures stable operation, high performance, and precise control accuracy, as well as the ICM42688P gyroscope responsible for stability and position detection. The F4V4 F435 65A Stack is a comprehensive solution specifically designed for FPV drones running on 3-6S batteries, with support for modern digital HD video systems.

Features:

• 16MB of Blackbox flash memory is provided for data storage
• Support for 3-6S LiPo provides a wide selection of batteries for various tasks
• The controller is equipped with an on-screen display (OSD) chip to display flight information in FPV goggles, as well as a barometer for altitude measurement
• A built-in Bluetooth module for configuring controller parameters directly from a smartphone via a mobile app without the need to connect wires
• The solder pads are made larger and stronger, ensuring reliable connections and resistance to vibrations during hard crashes
• The dimensions are 36.7mm * 36.7mm * 5mm (FC), 40.8mm * 39.4mm * 6.4mm (ESC), with mounting holes of 30mm * 30mm, making it suitable for most frames available on the market
