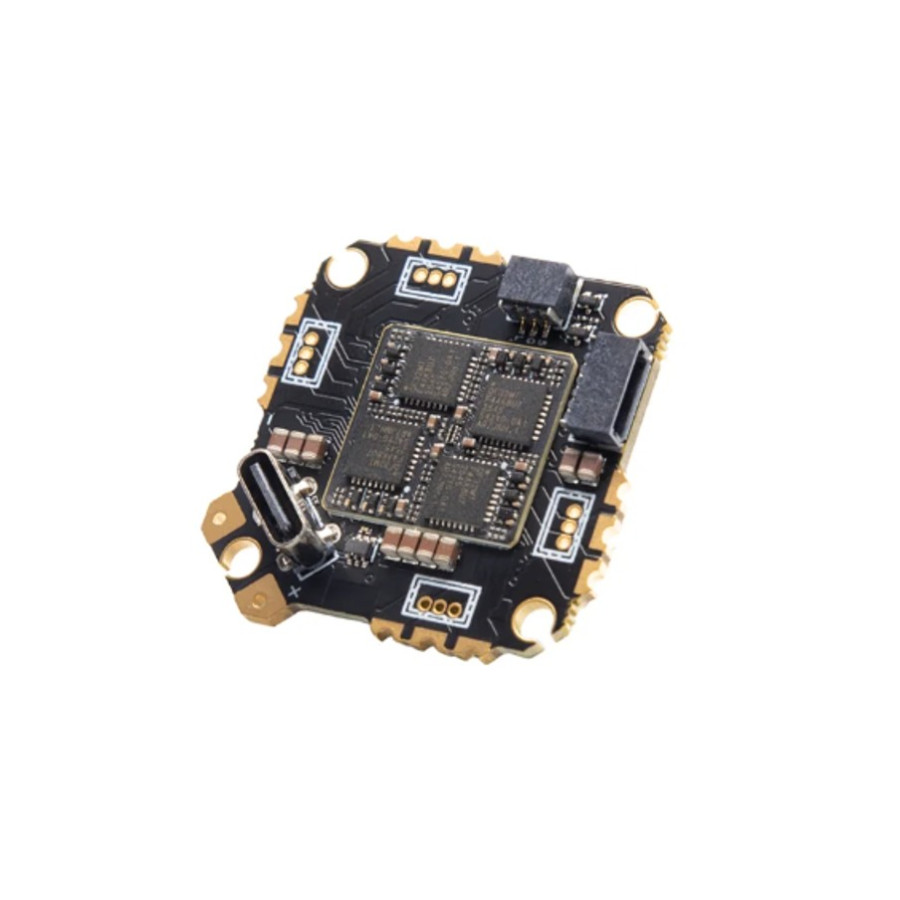

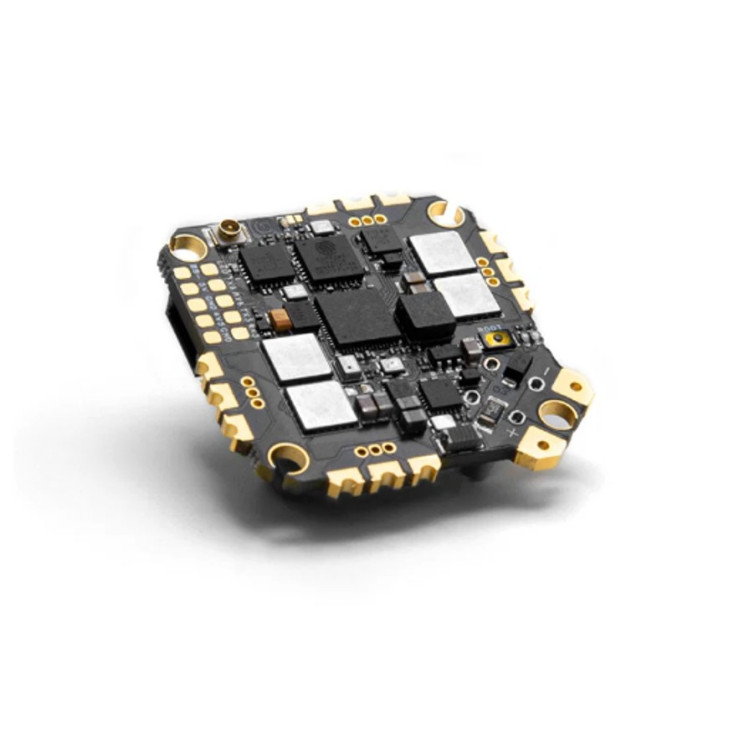

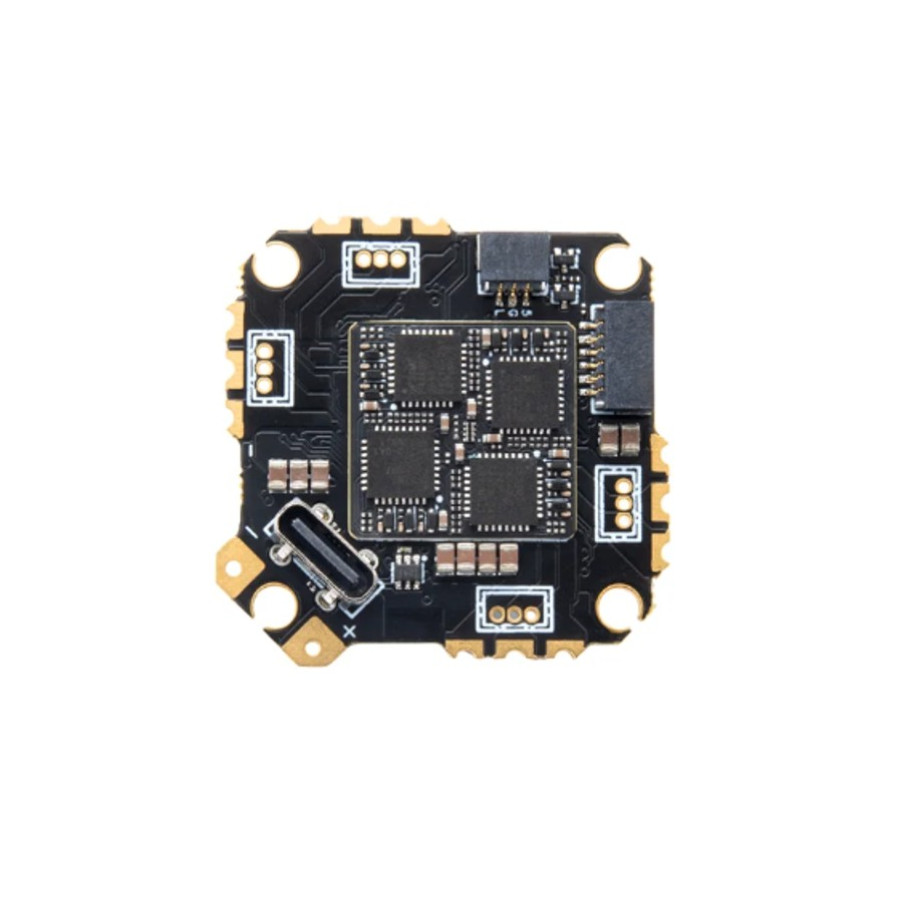

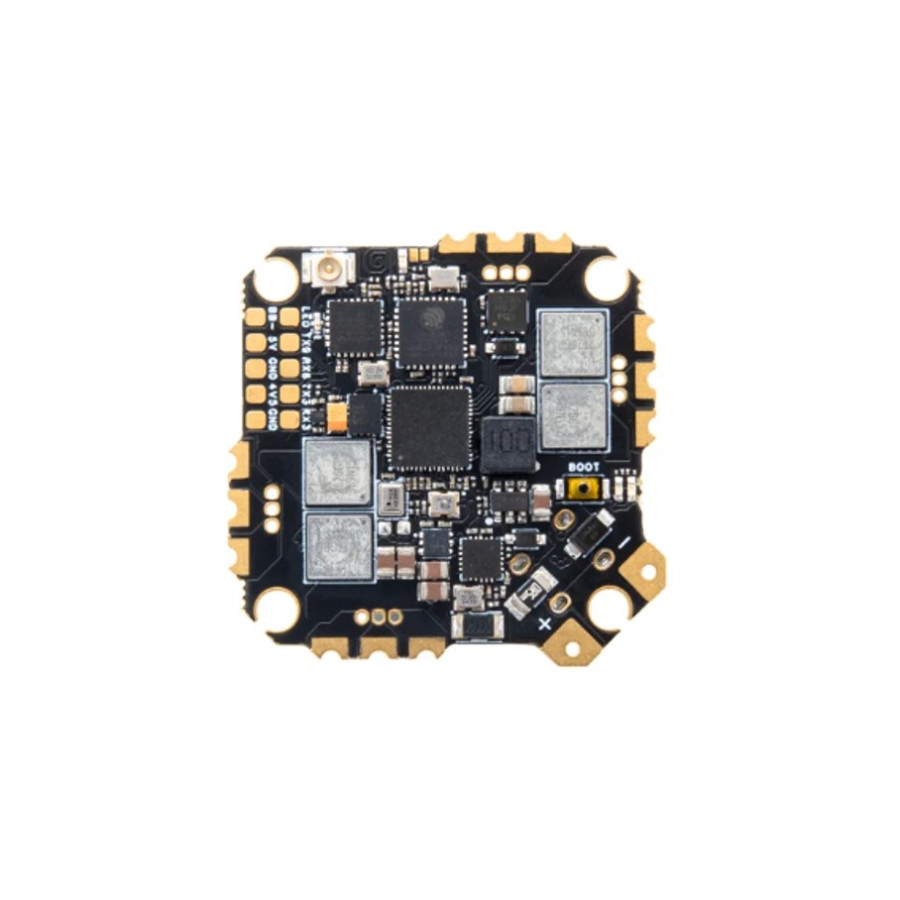

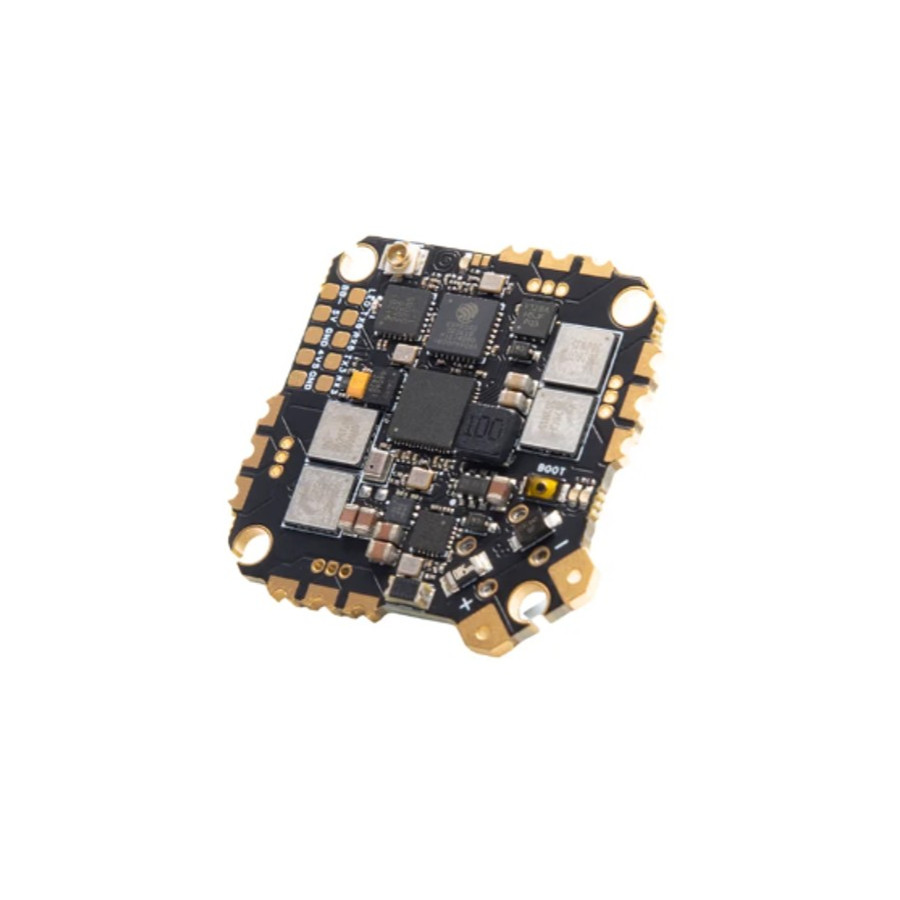

Flight Controller RateFPV H415 Mini 2-3S AIO

The RateFPV H415 Mini 2-3S AIO is an ultra-lightweight and ultra-powerful "all-in-one" (AIO) board that combines a flight controller, a 15A electronic speed controller (ESC), a gyroscope, and an expanded set of wireless features. It is specially designed for ultra-lightweight and powerful FPV drones, providing efficient control, high performance, and a fast, precise response. The main technical feature of this model is the use of an advanced, state-of-the-art H4 MCU processor with a 400MHz clock speed, which operates faster than traditional chips and ensures stable operation, high performance, and precise control accuracy, as well as the ICM42688 gyroscope responsible for stability and position detection. The Rate H415 15A Mini is a comprehensive solution specifically designed for micro-drones running on 2-3S batteries, with support for modern digital HD video systems.

Features:

• 16MB of Blackbox flash memory is provided for data storage
• Optimized wiring and component layout for connecting HD digital video systems
• Built-in ExpressLRS serial radio receiver, eliminating the need to solder an external RX and reducing weight
• Conveniently located USB Type-C port for quick firmware updates and computer connection
• Built-in Bluetooth module for configuring controller parameters directly from a smartphone via a mobile app
• The controller dimensions are 33.2mm * 33.3mm * 4.6mm, with mounting holes of 25.5mm * 25.5mm, making it suitable for most frames available on the market
