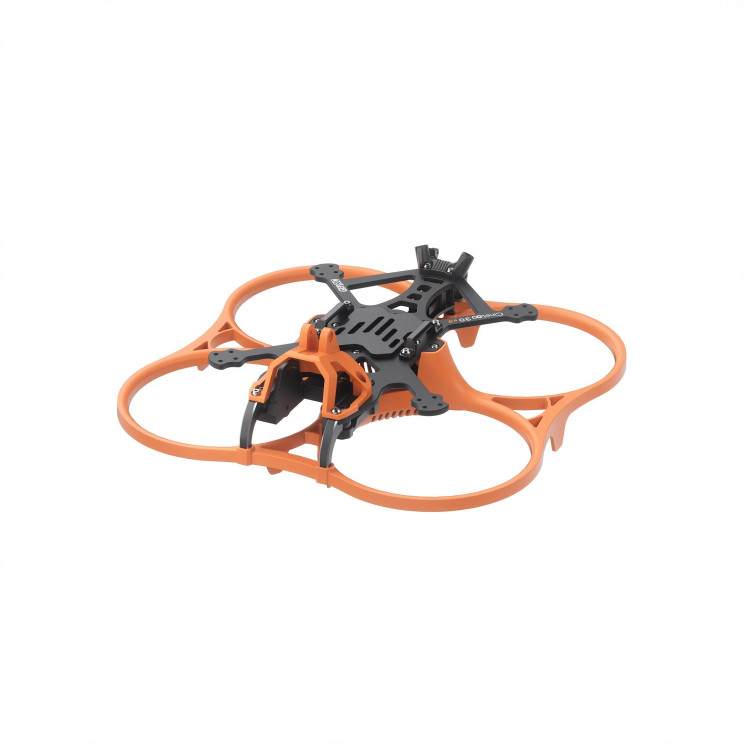

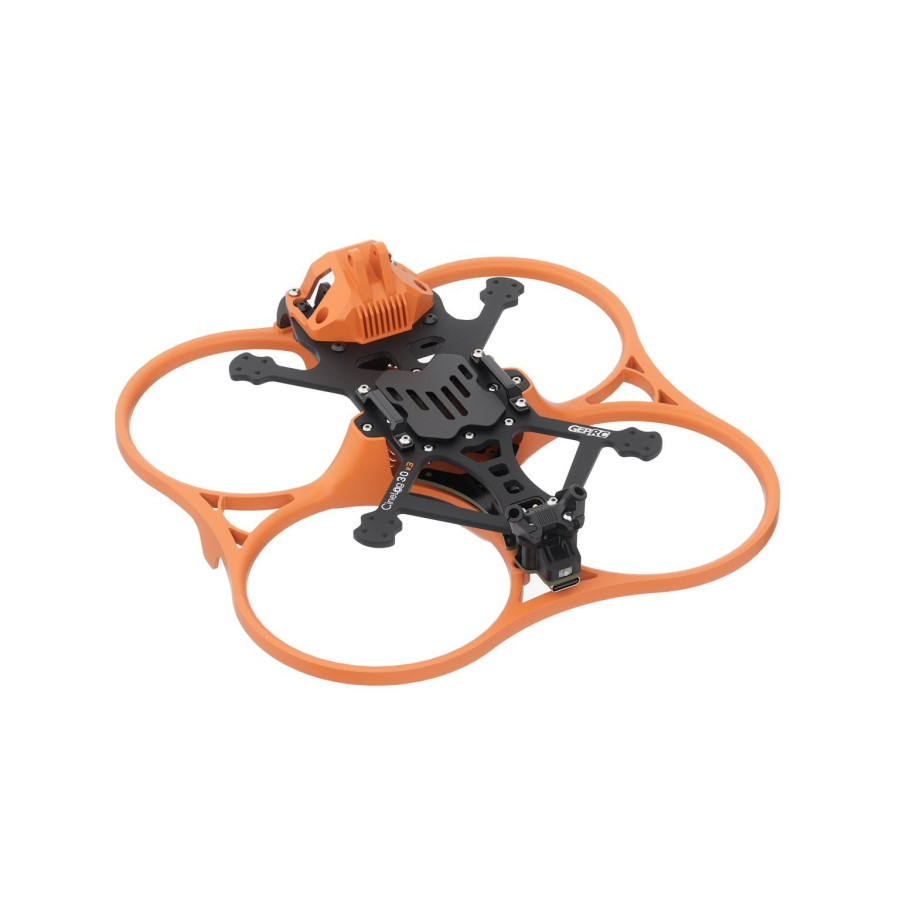

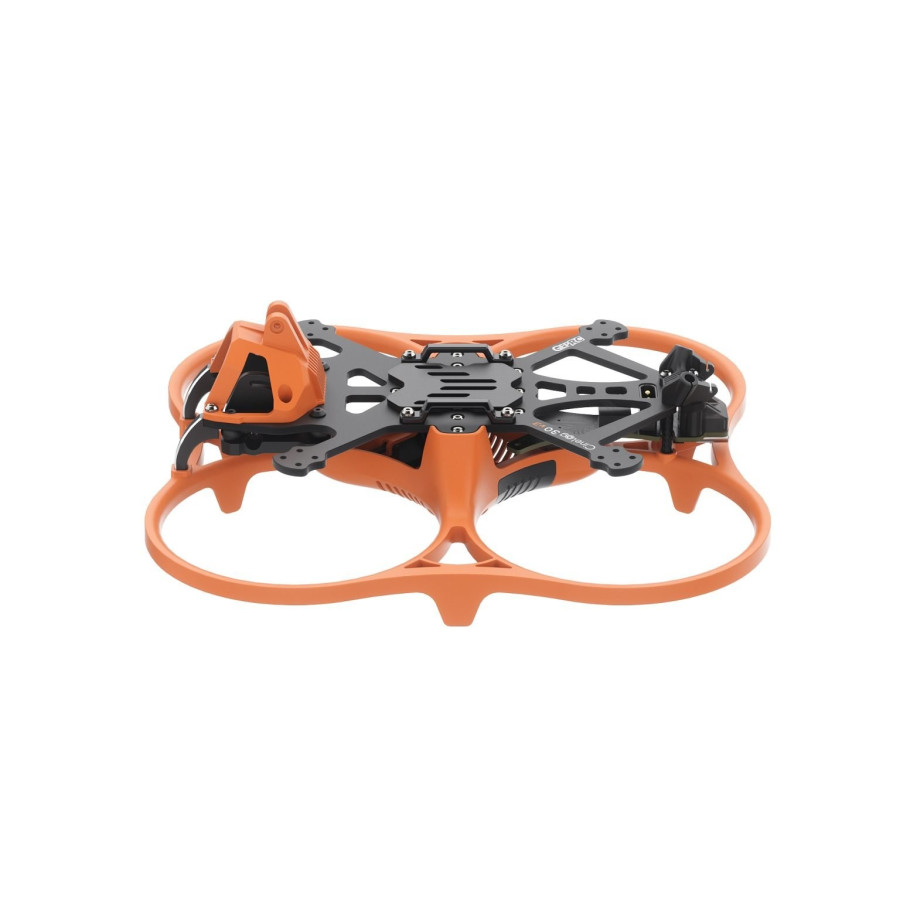

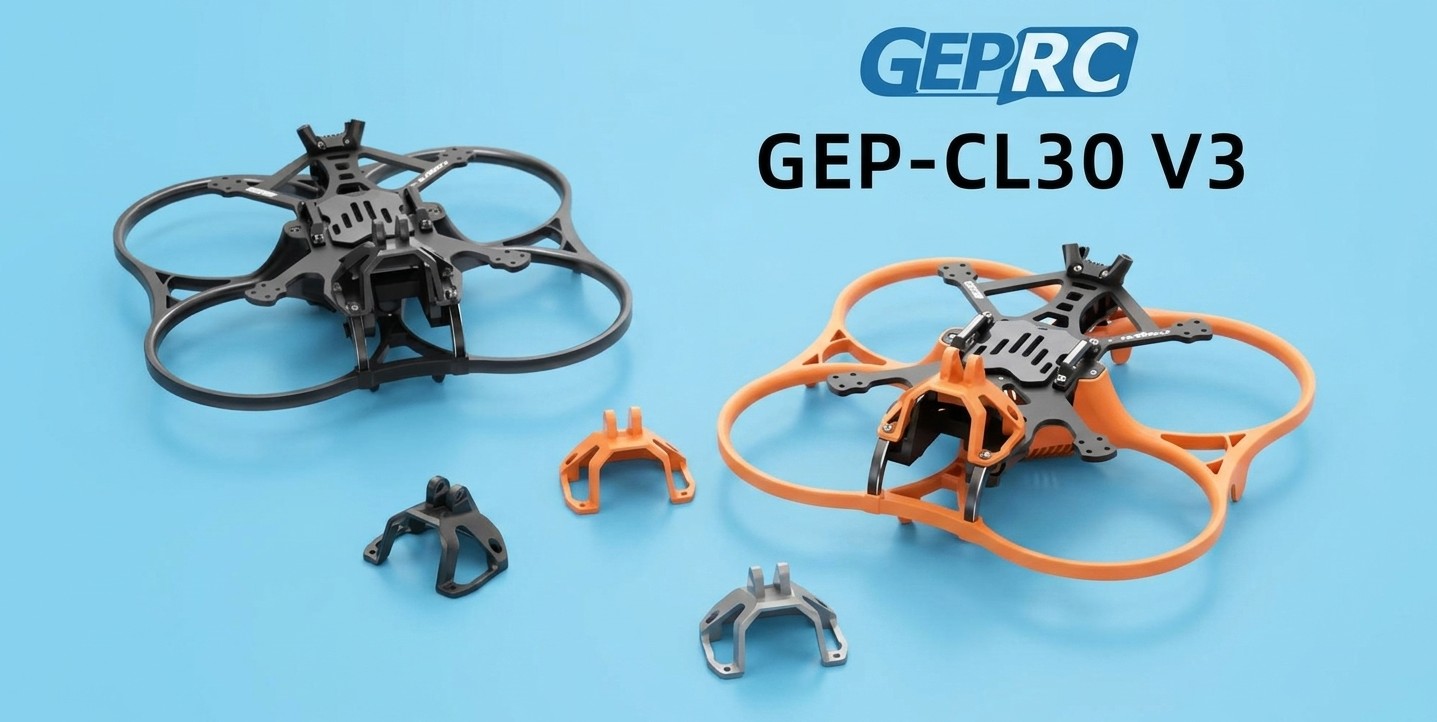

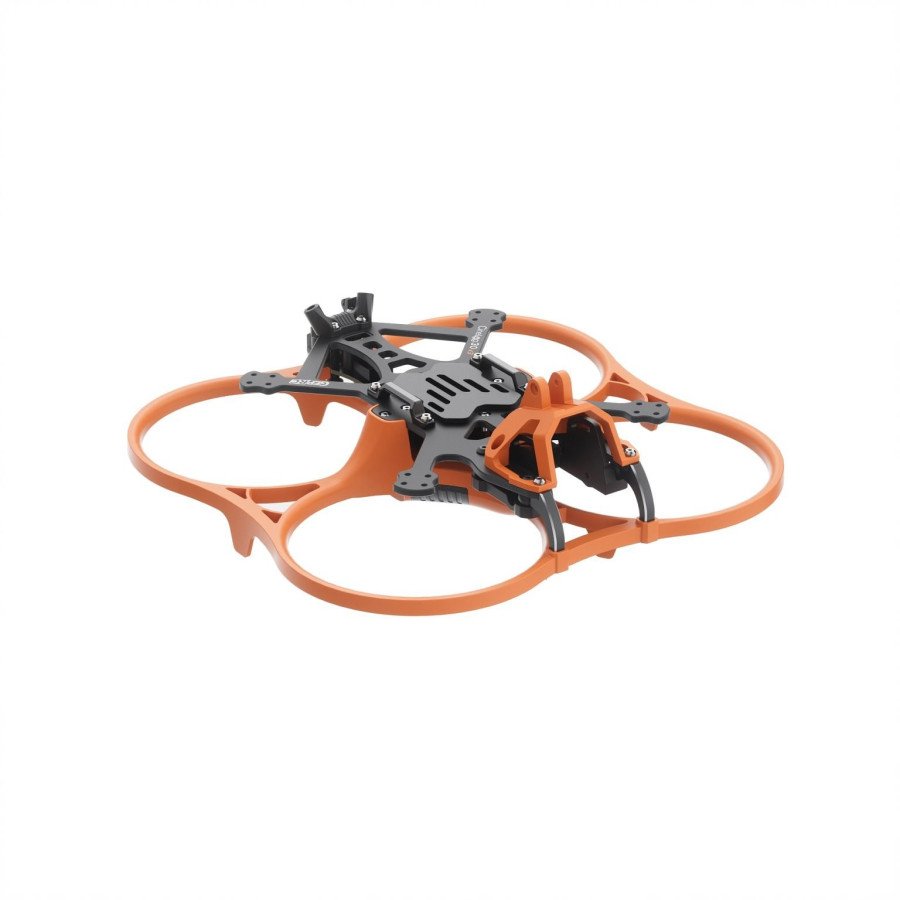

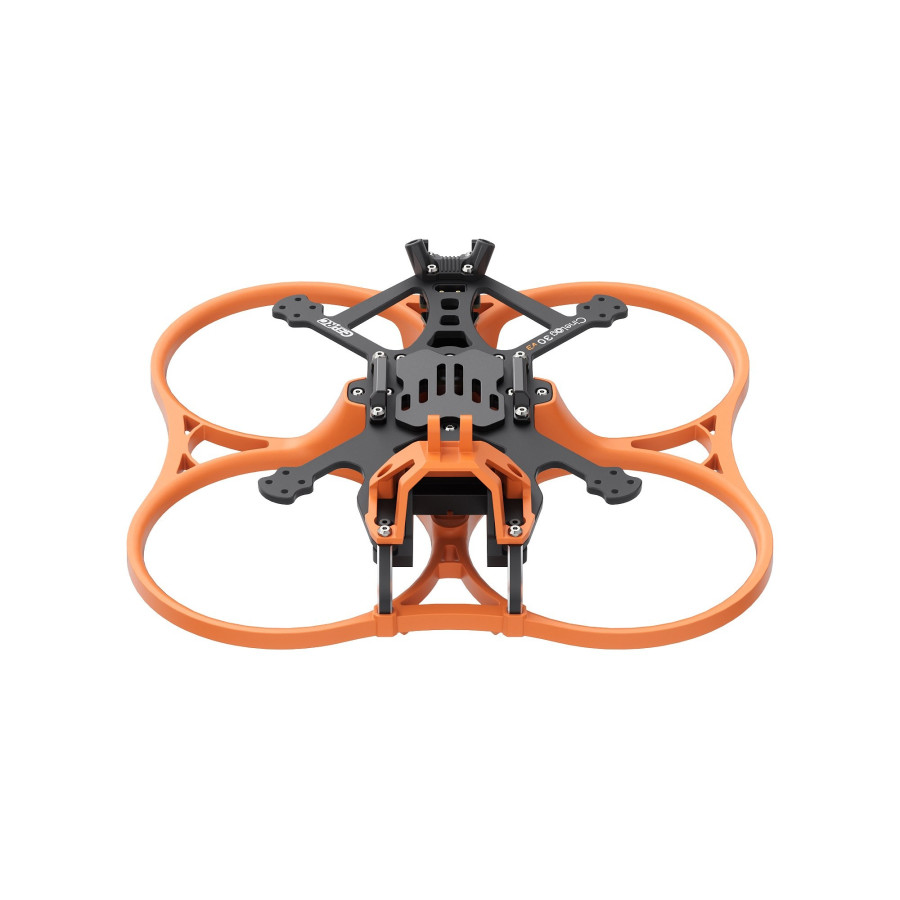

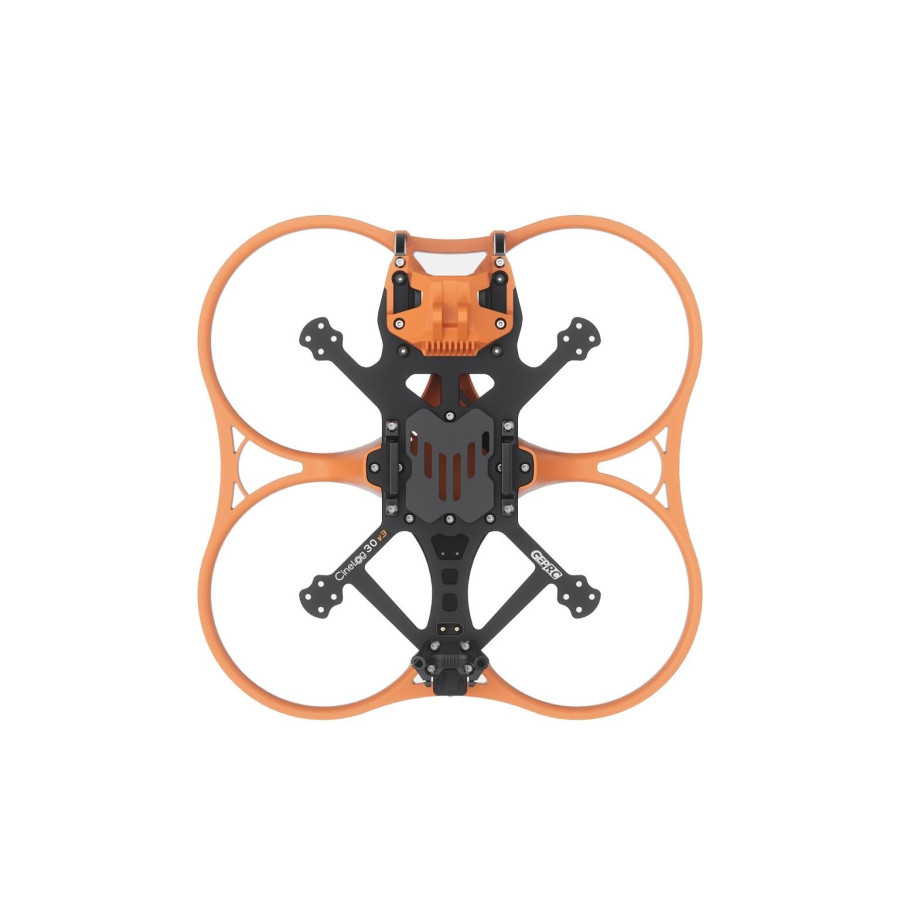

The GEPRC GEP-CL30 V3 is a specialized 3-inch frame with a 128mm wheelbase designed for Cinewhoop-style FPV drones. It is specifically engineered to accommodate the DJI O4 Air Unit Pro, including a protective frame, canopy, and custom silicone plugs that shield data ports from dust and debris during takeoff and landing. The frame is constructed from a combination of carbon fiber plates (2.5mm thick) and molded plastic protective elements. Furthermore, the chassis is reinforced with aluminum components to enhance structural rigidity with minimal added weight. This frame is intended for building efficient and reliable FPV drones for smooth, high-quality filming in both confined and open spaces.
Features:
- A gimbal mount reduces vibrations, ensuring smooth and stable footage
- The design allows for rapid disassembly and assembly of the frame using only 6 screws, significantly simplifying access to components
- The kit includes a special 6-in-1 board that simplifies assembly by integrating a USB-C port, XT30 power connector, buzzer, BEC for LED strip power, and anti-spark protection

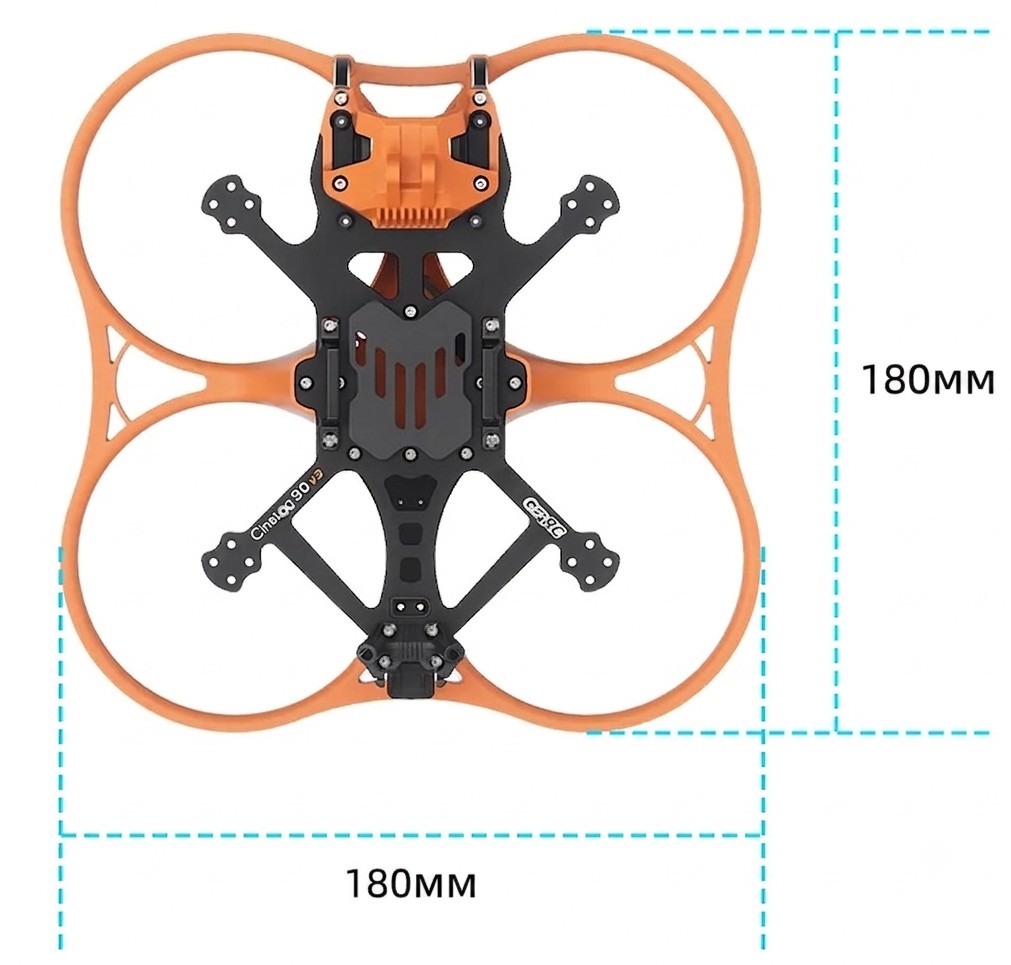

- The frame dimensions are 180mm * 180mm, with a weight of 78g
- Brand
GEPRC
- Plate Thickness
2.5mm
- Charge connector
XT30
- Canopy Color
Orange, Black, Gray
- Frame size
180mm*180mm
- Size (diagonal between motor centers)
128mm
- FC mounting hole
25.5mm*25.5mm
- Motor mounting hole
9mm*9mm
- VTX mounting hole
20mm*20mm/25.5mm*25.5mm
- Camera mount size
20mm
- Propeller size
3-inch
- Color
Orange, Black
- Material
A combination of carbon plates (2.5mm thick) and molded plastic protective elements
- Model
GEP-CL30 V3
- Weight
78±2g
- City
Odesa, Kharkiv, Kyiv, Kherson, Ternopil, Vinnytsia, Dnipro, Zhytomyr, Zaporizhzhia, Ivano-Frankivsk, Kropyvnytskyi, Lutsk, Lviv, Mykolaiv, Poltava, Rivne, Sumy, Uzhhorod, Khmelnytskyi, Cherkasy, Chernivtsi, Chernihiv

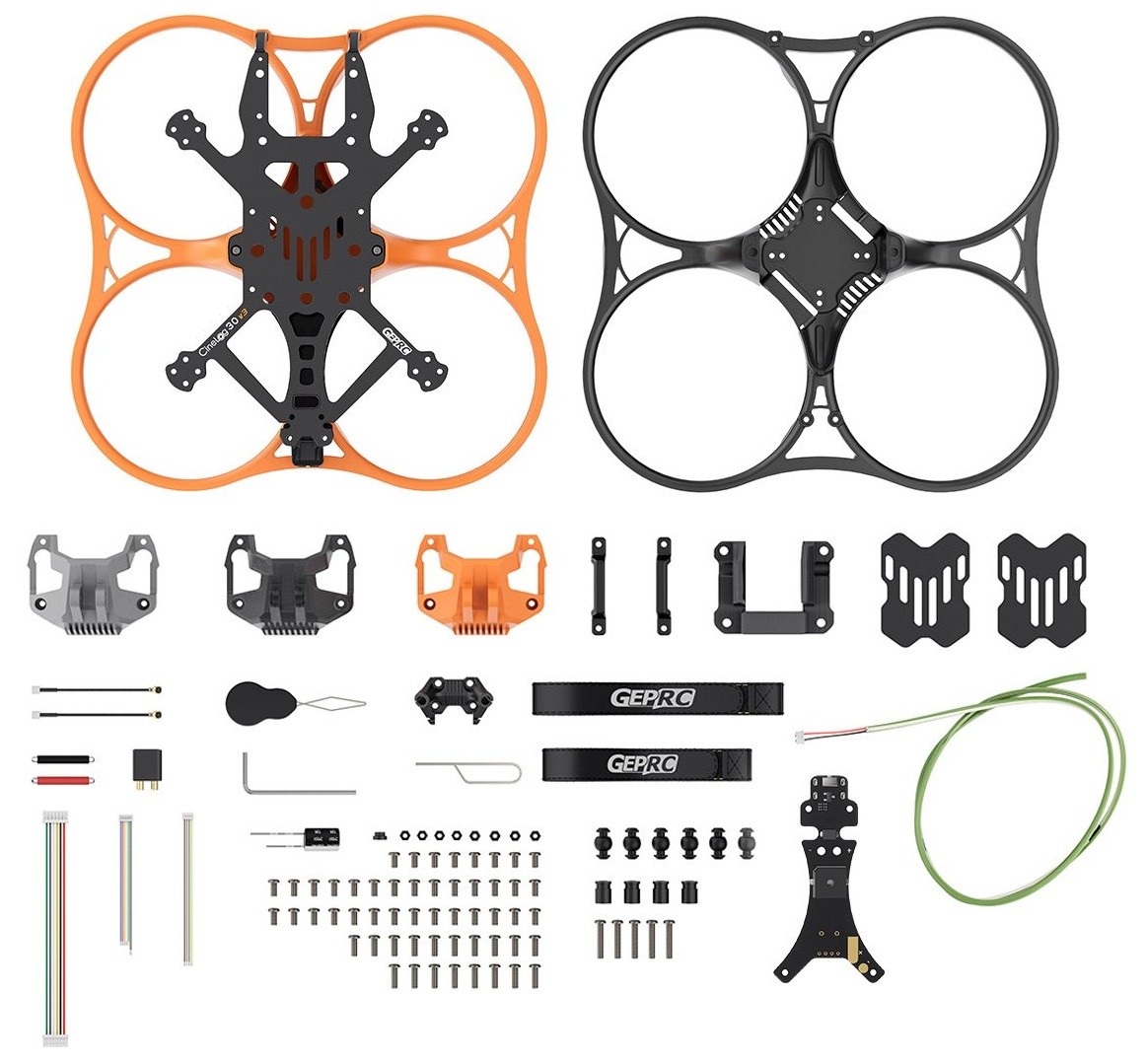

1 x Frame GEP-CL30 V3 (Black）
1 x Frame GEP-CL30 V3 (Orange）
1 x Canopy (Black）
1 x Canopy (Orange）
1 x Canopy (Grey）
1 x Aluminum battery strap
1 x Aluminum lens mount
1 x LED strip
2 x Battery anti-slip pads
1 x Cinelog30 V3 FCB
1 x 15mm*150mm battery strap
1 x 15mm*130mm battery strap
1 x L-shaped screwdriver 1.5mm
1 x Spare screw pack
1 x Battery anti-slip pad
6 x Damping ball puncher
1 x Frequency pairing ejector pin
1 x Screw pack
